Minimum Order Quantity |
1 Unit |
|
Automatic Grade |
Automatic, Semi-Automatic |
|
Design |
Customized |
|
Capacity |
0.3 TPH- 0.5 TPH,0.3 TPH- 2 TPH |
|
Material |
Stainless Steel |
|
Brand |
Mechcon |
|
Noise |
Below 60 dB |
|
Power |
5.5 kW- 7.5 kW
|

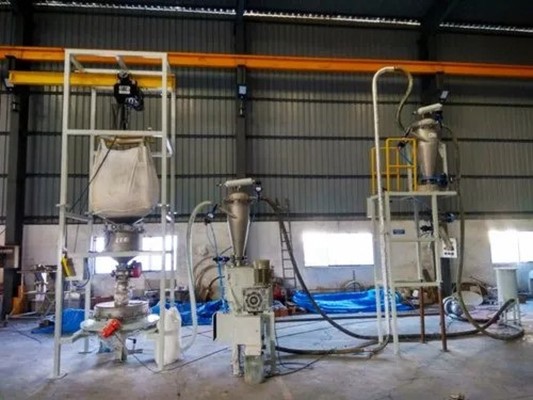

The PTS – Powder Transfer System offered by Mechcon Technologies is an exceptionally effective and reliable method of transferring and dispensing both dry and wet powders and granules. Its unique filtration concept with a flat membrane and cartridge membrane makes it the only vacuum dense-phase system suitable for large number of powders.
Powder Transfer System Benefits:
-
Contained Product Transfer
-
Ease of Bin Filling and Discharging
-
Ease of Cleaning
Features
-
Empties or fills all process equipment (including reactors, dryers and centrifuges)
-
Transfers all powders (sticky, fine, non-free flowing, hygroscopic, humid, etc.)
-
Charges directly into closed vessels under vacuum or pressure ·
-
Easy to install, operate and maintain
-
Uses flexible hose for material suction with FDA approvals
-
Totally hygienic.
-
Operator no longer exposed to a reactive environment
-
Creation of electrostatic charges is strongly reduced as hos is statistically earthen.
-
It’s a solution for mobile convening.
Vacuum conveying - Working principle
-
Creation of a permanent under pressure inside the separator
-
Suction of the powder from the supply hopper (bag, IBC, silo, etc…)
-
Cyclone filling, up to the level sensor or till the predetermined time.
-
Opening of the discharge valve
-
Powder discharge and cleaning of the separator’s filter, using a gas blow-back
-
During all the transferring the filter clogging is controlled by a differential pressure transmitter
Following are the advantages of vacuum conveying system over pressure conveying system
-
Economical Solution
-
Easy to install and operate
-
No moving parts in contact with the material to be conveyed
-
Complete close system, which allows product and environmental protection
-
Generally preferred for delicate and dangerous products quite safely
-
Able to transfer a wide range of products (fine, non-free flowing, hygroscopic, sticky powders)
-
Transfer capacity from few kg to 4 ton per hour
-
Safe conveying of API/HAPI’s - up to OEB5
-
Low footprint
-
Filtration surface in function of the application
-
Integrated hi efficiency in-line filter cleaning system
-
Minimal or No tools required to disassemble the unit
-
Easy to clean
-
GMP and ATEX compliant
Mechcon PTS Models
|
Sr. No |
Model No |
Transfer Capacity |
|
2 |
PTS-150 |
0.5 TPH – 0.75 TPH |
|
3 |
PTS-200 |
0.75 TPH – 1.25 TPH |
|
4 |
PTS-250 |
1.25 TPH – 2 TPH |
|
5 |
PTS-300 |
2 TPH – 2.5 TPH |
|
6 |
PTS-350 |
2.5 TPH – 3 TPH |
|
7 |
PTS-400 |
3 TPH – 4 TPH |
